Detail Wasp Nano CP w/o Transmitter

Rp 890,000

ATTENTION

Paket ini adalah paket ARF (tidak termasuk Transmitter), jika anda ingin paket lengkap dengan transmitter (Radio Control) silahkan pilih paket RTF.

DESCRIPTION

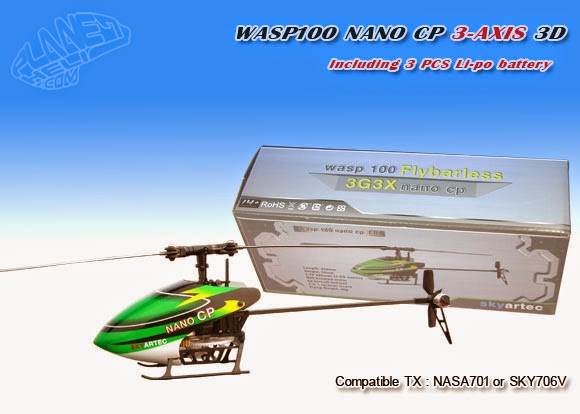

The Skyartec WASP NANO CP helicopter, which is the latest product with high performance, easy control, stable, durable and light weight. WASP NANO CP adopts 3-Axis Gyro System with tail rotor ,incredible real-time response in any 3D stunt flight. Furthermore,it offers good stability and agility with configurating LCD 2.4GHz 7CH radio control.

Highlight Features:

The fuselageis made of strong, durable, special plastics.
Hi-performance 3-axis flybarless system by SKYARTEC provides with much more stability, functionality and capability.
Amazingly compact all-in-one and lightweight design will guarantee you the most fresh and exciting flight experience.
Advanced configuration helps you control the helicopter precisely and have the incredible real-time response which performing a variety of stunt flying skills.
Five in one board integrating receiver, 3-Axis gyro, servo, main Brushed ESC, tail Brushed ESC.
Free to change flight mode:(Long press the button on receiver, handsoff after the indicator light change color.
Green light is for beginner flight mode, red light is for 3D flight mode).

There are two modes for 3D flight practice and expert fliers.

For the 3D Flight Mode (Red Light), flies with good agility, rapid respond and high speed movement. For the beginner mode (Green Light), the helicopter flies in lower speed with more gentle movement. Much easier to control, suitable for practising. Many flies have great comments for this flight mode!

Have a look at the circuit board of the NANO CP.

Aileron: connect with aileron servo, output aileron servo control signal
Elevator: connect with elevator servo, output elevator servo control signal
Pitch : connect with pitch servo, output pitch servo control signal
Tail motor: connect with tail motor, output tail motor control signal
Main motor: connect with main motor, output main motor control signal
Aileron/elevator sensitivity adjusting knob: adjust aileron/elevator gyro sensitivity, change flight effect
Button: for code-pairing and flight mode change
Antenna
Indicator light: indicate receiving signal status and flight mode status
Upgrade port: upgrade spare
Power line: connect with battery (3.7V)

SPECIFICATION

Length: 225mm

Height: 75mm

Main rotor diameter: 240mm

Tail rotor diameter: 36mm

Motor pinion gear: 9T

Main Drive Gear: 61T

Flying Weight: 48g

Receiver: 5 in 1 receiver board (Receiver / 3-Axis Gyro / Servo control / Main Brushed ESC / Tail Broushed ESC)

Battery: 3.7V 240mAh Li-Polymer Battery

Motor: N40 Brushed Motor + Tail Motor

Servo: 2g Servo (5 lines) x 3

Transmitter: NASA 701 LCD 2.4GHz 7CH Transmitter (NOT Included)

Battery for Transmitter: 8 x AA Battery (NOT Included)
